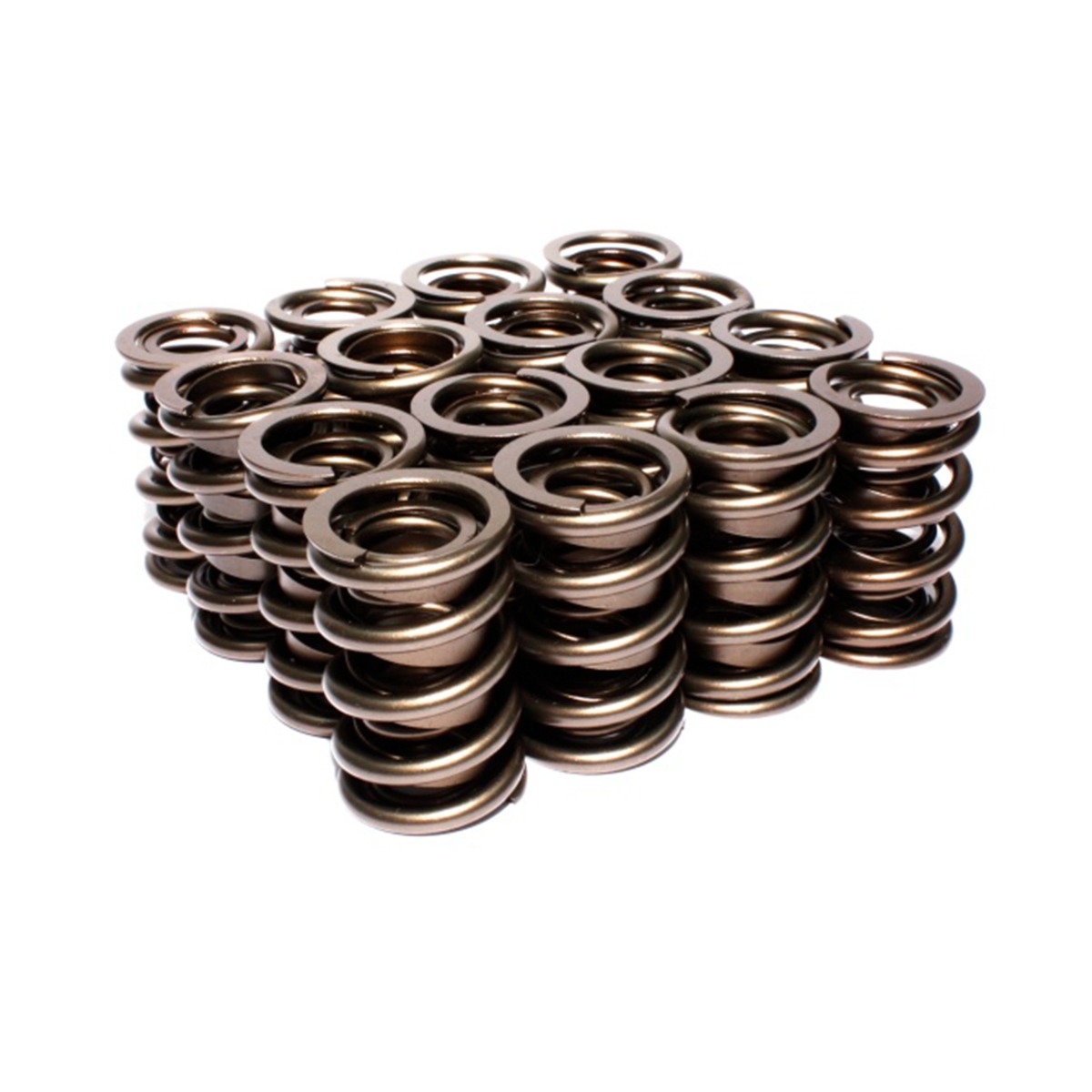

Sure Seat Valve Springs for Cylinder Heads
$169.95
The Edelbrock #5823 Sure Seat Valve Springs are Replacements for Edelbrock Vic Jr. Cylinder Heads with Mechanical Roller Camshafts. They are made of the highest quality spring wire and precision wound to close tolerances.
TEMPORARILY OUT OF STOCK
SKU
5823
The Edelbrock #5823 replacement mechanical roller Sure Seat Valve Spring for Edelbrock cylinder heads are made of highest quality spring wire and precision wound to close tolerances.
Installation Notes:
• For Mechanical Roller camshafts
Installation Notes:
• For Mechanical Roller camshafts
| Part Type | Engine Valve Spring Kit |
|---|---|
| Manufacturer | Edelbrock |
| Application | Universal |
| UPC | 085347058235 |
| Grade Type | Performance |
| Quantity | Set of 16 |
| Installed Pressure | 210 lbs |
| Spring Type | Cylindrical |
| Coil Bind Height | 1.170 in |
| Open Height | 0.600 in |
| Installed Height | 1.900 in |
| Closed Pressure | 210 |
| Camshaft Type | Hydraulic Roller |
| Open Pressure | 490 |
| Closed Height | 1.900 in |
| E85 Compatible | No |
| Oxygenated Fuel Compatible | No |
| Warranty | 12 Months |
| Emissions Code | N/A |
| Hazardous Materials Warning |
 WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Inside Diameter | 0.731 in |
| Material | Chromium Silicon |
| Outside Diameter | 1.540 in |
