Sure Seat Valve Springs for Chevy 262-400 V8 1957-95
$68.95
The Edelbrock #5802 Sure Seat Valve Spring for Chevy 262-400 V8 1957-95 O.E Cast iron cylinder heads are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts.
In stock
SKU
5802
The Edelbrock #5802 Sure Seat Valve Spring for Chevy 262-400 V8 1957-95 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.
Installation Notes:
• Non-Rotator springs

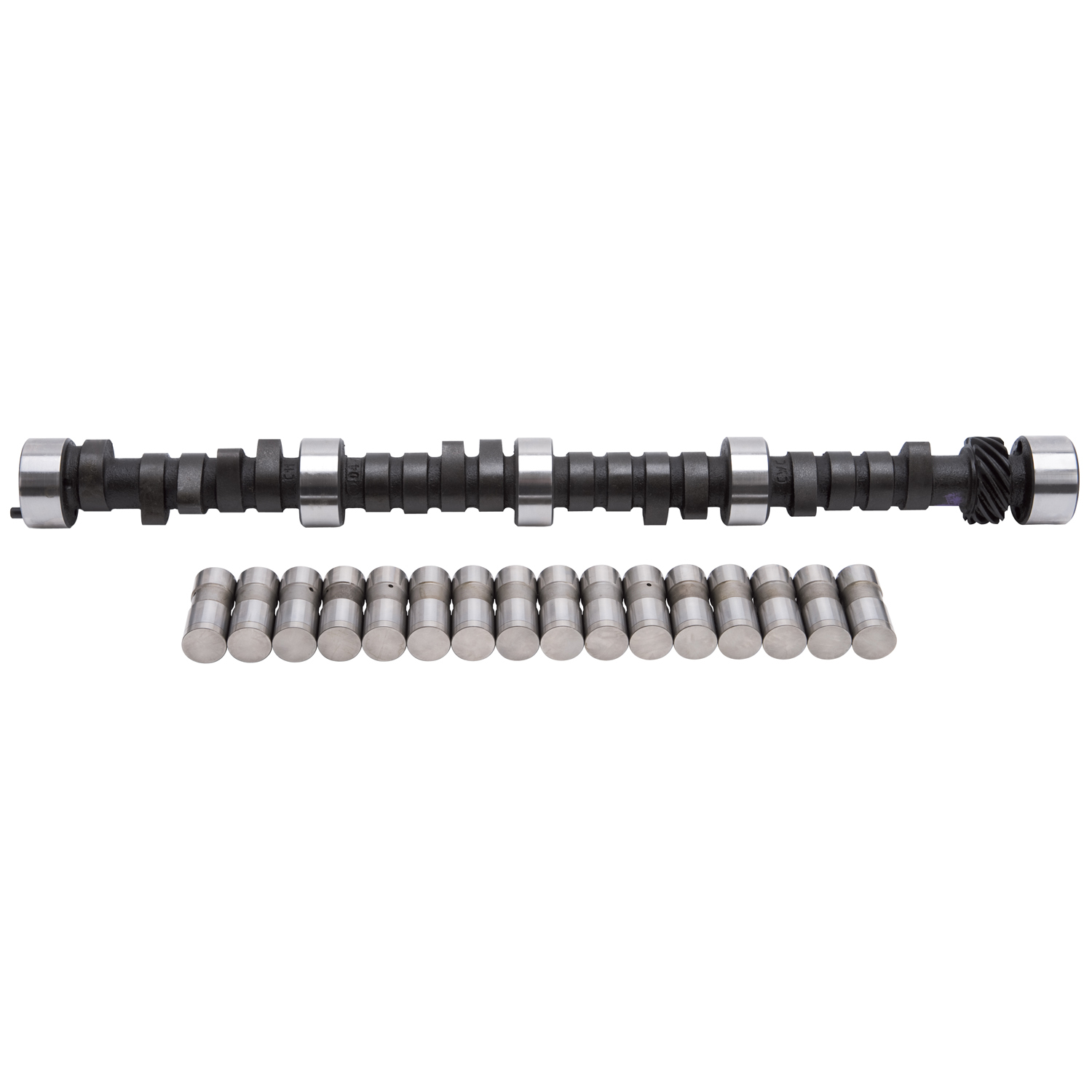

• Recommended Edelbrock Cam: #2102, 2103, 3702
• In 305-350 Chevys, some '77 & later vehicles have heads #14014416 (scalloped-out appearance at bottom), use non-rotator springs #5802 with stock rotators
Installation Notes:
• Non-Rotator springs
• Recommended Edelbrock Cam: #2102, 2103, 3702
• In 305-350 Chevys, some '77 & later vehicles have heads #14014416 (scalloped-out appearance at bottom), use non-rotator springs #5802 with stock rotators
| Part Type | Engine Valve Spring Kit |
|---|---|
| Manufacturer | Edelbrock |
| Engine Manufacturer | Chevrolet |
| Engine Family Name | Small-Block |
| Engine Size | 262 (4.3L), 283 (4.6L), 302 (5.0L), 327 (5.4L), 350 (5.7L), 400 (6.6L) |
| Application | Universal |
| UPC | 085347058020 |
| Grade Type | Performance |
| Quantity | Set of 16 |
| Installed Pressure | 80 lbs |
| Spring Type | Cylindrical |
| Coil Bind Height | 1.150 in |
| Open Height | 0.475 in |
| Installed Height | 1.700 in |
| Closed Pressure | 80 |
| Camshaft Type | Hydraulic Flat Tappet |
| Open Pressure | 200 |
| Closed Height | 1.700 in |
| Warranty | 12 Months |
| Emissions Code | N/A |
| Application Summary | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Hazardous Materials Warning |
 WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Inside Diameter | 1.222 in |
| Material | Chromium Silicon |
| Outside Diameter | 0.875 in |
