Torker II 340/360 Small Block Chrysler Intake Manifold

was $474.95 Special Price $379.96

Edelbrock Torker II Intake Manifold for 318-360 Chrysler Small Block LA engines

In stock

SKU

5076

Details

Edelbrock Part # 5076 Torker II intake manifold is designed for high performance street 340-360 c.i.d. Chrysler V8's. Manifold not equipped with EGR. Can be used on 318 c.i.d. if 340-360 c.i.d. cylinder heads are used. Will not fit 1992 and later Magnum engines. Not for heavy vehicles (trucks, vans etc.); use Performer #2176 intake manifold.

PRODUCT SPECS

More Information
Part Type	Engine Intake Manifold
Manufacturer	Edelbrock
Engine Manufacturer	Chrysler / Dodge / Plymouth
Engine Family Name	LA Engine
Engine Size	318 (5.2L), 340 (5.6L), 360 (5.9L)
Application	Application Specific
UPC	085347050765
Series	Torker/Torker II
Material	Aluminum
RPM Operating Range	2500-6500 RPM
Gasket Or Seal Included	No
Vehicle Model	Chrysler
Warranty	12 Months
Emissions Code
Application Summary	Chrysler:Small-Block:318 (5.2L)/340 (5.6L)/360 (5.9L)
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

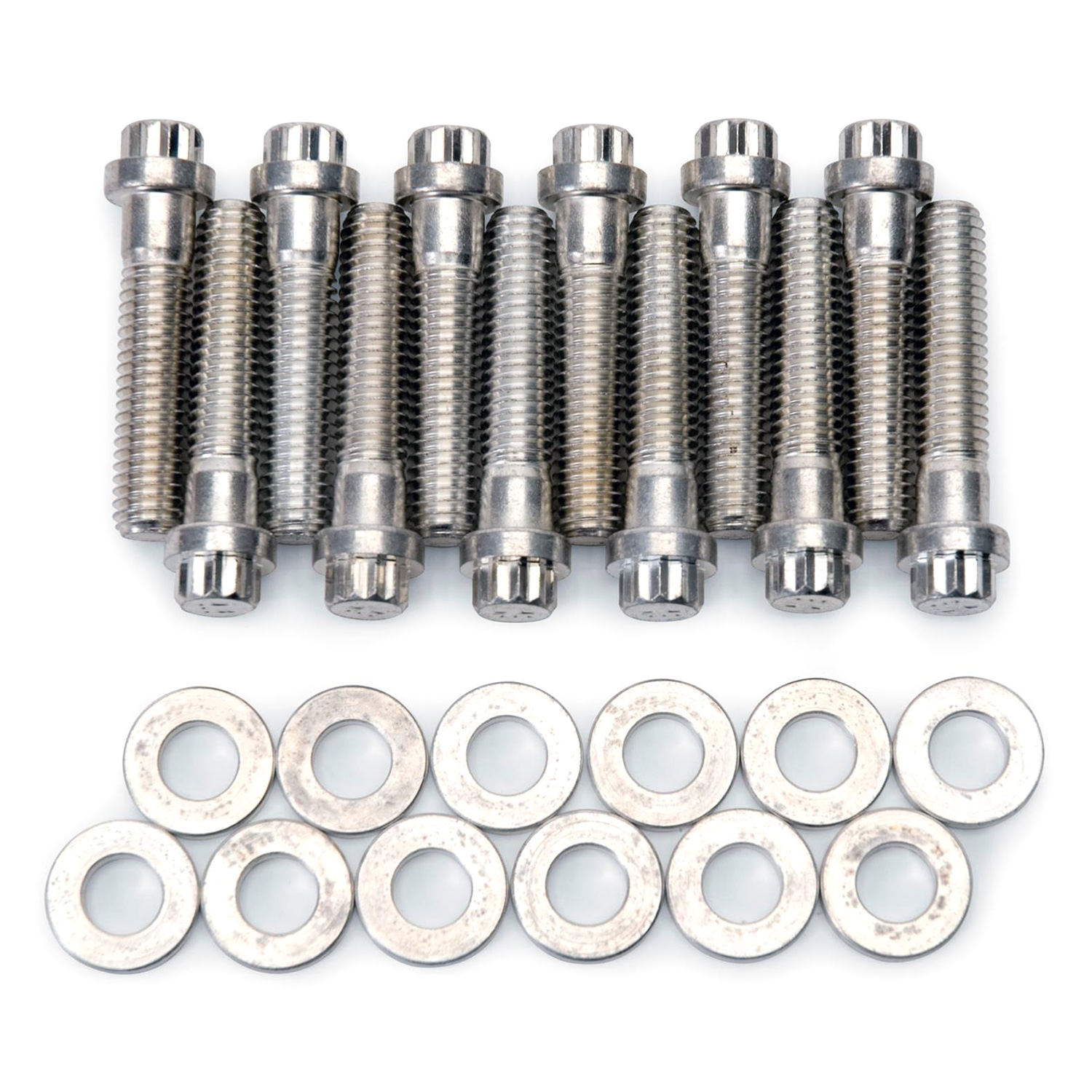

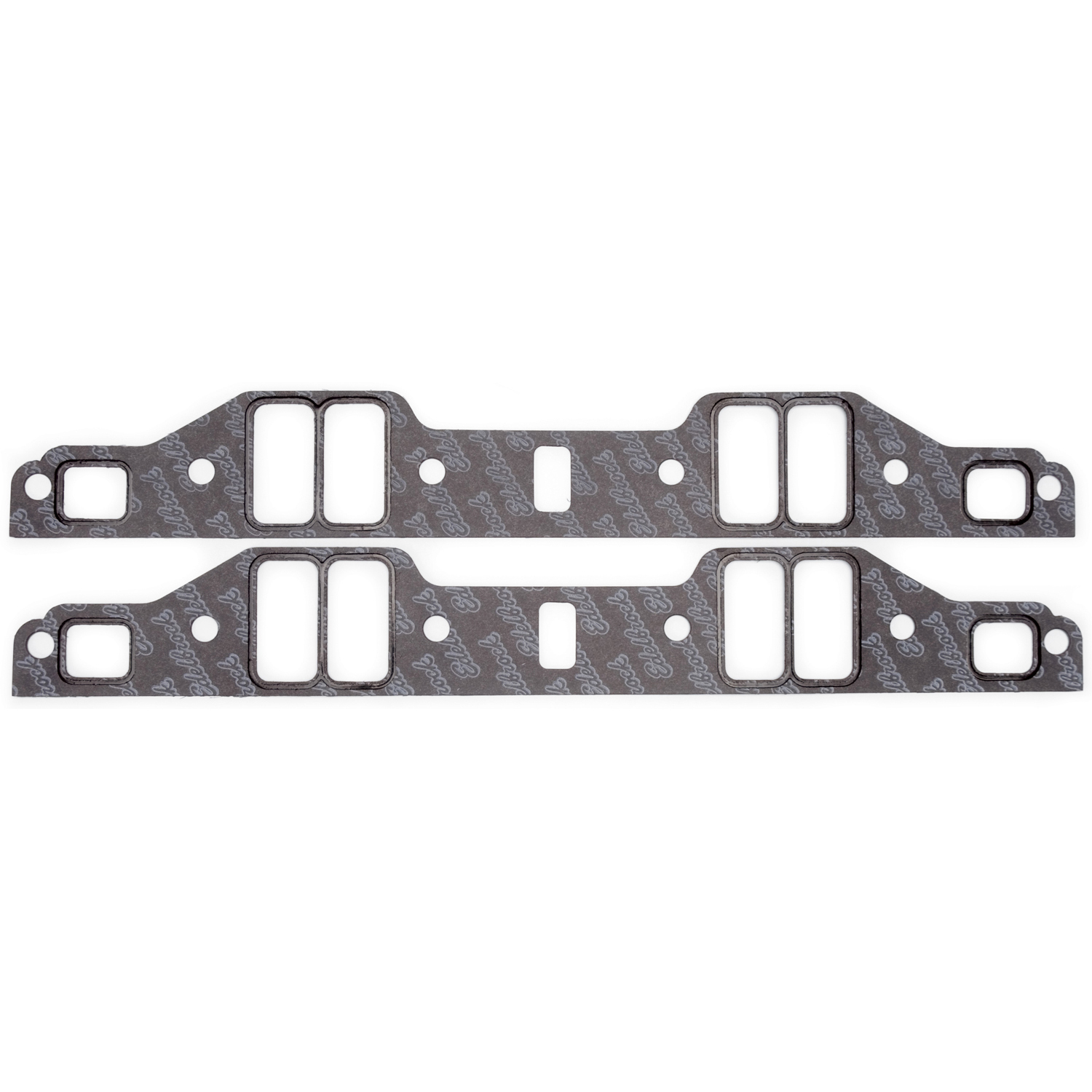

Installation Notes	Recommended intake gasket: Edelbrock # 7276, Fel-Pro #1213, Chrysler #4397642 (or equivalent) Manifold height: A-5.25", B-6.19" Carb pad height: 5.72" Carb recommendations: Edelbrock AVS2 or Performer Series 600-800cfm. Use # 1481 or # 1843 throttle/transmission lever kit. Port exit dimensions: 1.00" x 2.17" Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS. Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Special Price	$379.96
Color	Satin
Rear Maximum Height	5.720 in
Single Or Dual Plane Type	Single
