Performer RPM Big Block Chevy 2-R Intake Manifold

$427.95

Edelbrock Performer RPM 2-R Intake Manifold for Chevrolet 396-502 Big-Block V8

In stock

SKU

7163

Details

Edelbrock Part # 7163 Performer RPM 2-R intake manifold is designed for street 396-502 c.i.d. Chevrolet V8's with high-performance rectangular-port cylinder heads. This dual-plane high-rise manifold offers maximum horsepower with a broad torque curve. No provisions for exhaust heated chokes. Accepts late-model waterneck, air-conditioning, alternator and HEI equipment.

PRODUCT SPECS

More Information
Part Type	Engine Intake Manifold
Manufacturer	Edelbrock
Engine Manufacturer	Chevrolet
Engine Family Name	Big-Block Gen V, Big-Block Mark IV
Engine Size	396 (6.5L), 402 (6.6L), 427 (7.0L), 454 (7.4L), 502 (8.2L)
Application	Application Specific
UPC	085347071630
Series	Performer RPM
Material	Aluminum
Finish	Satin
RPM Operating Range	1500-6500 RPM
Gasket Or Seal Included	No
Vehicle Model	Chevrolet
Warranty	12 Months
Emissions Code
Application Summary	Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

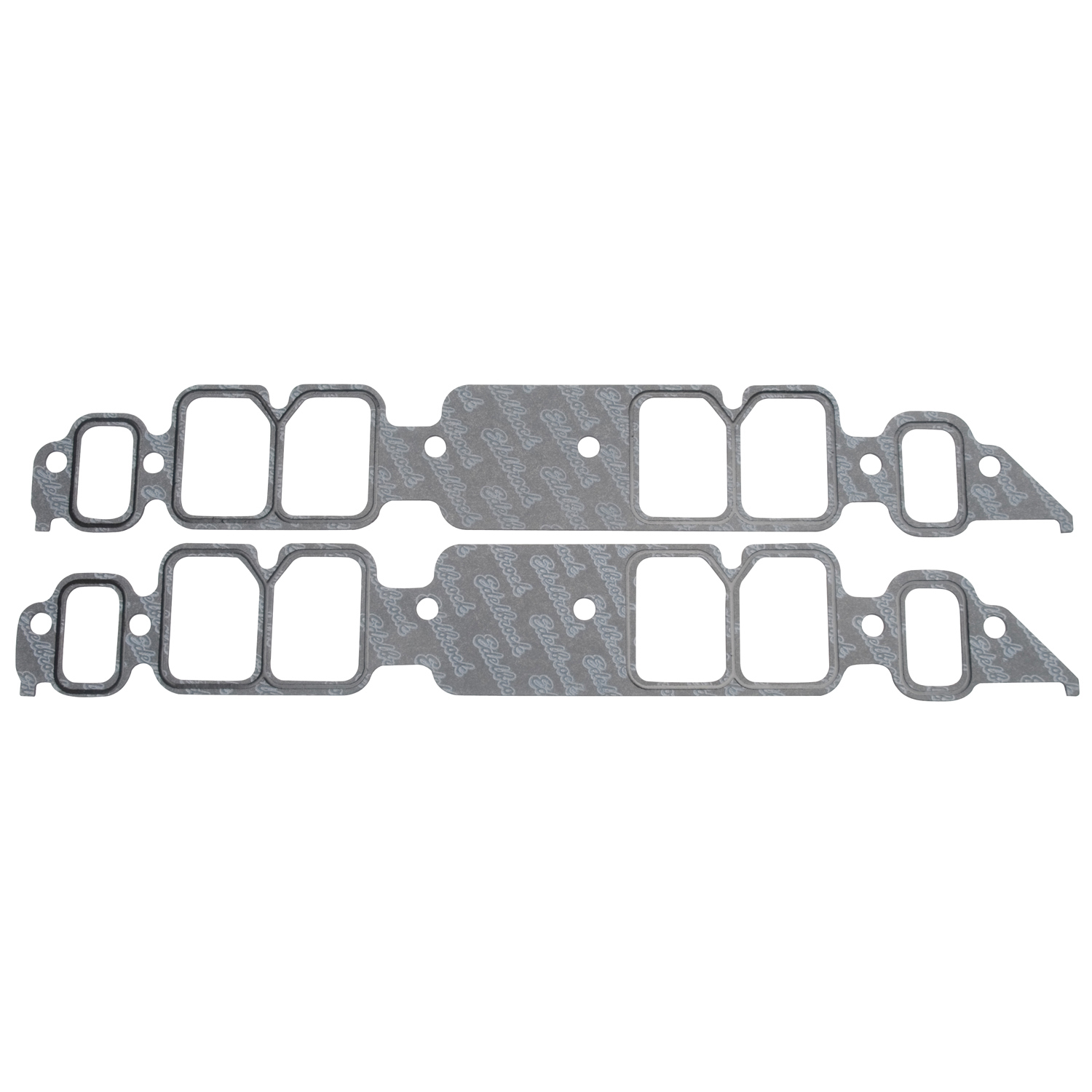

Installation Notes	Recommended intake gasket: Edelbrock # 7202 Manifold height: A-4.45", B-6.0" (.25" taller than stock high-rise aluminum manifold) Carb pad height: 5.22" Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket # 8031 for 1972-78. Port exit dimensions: 1.56"w x 2.24"t Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS. Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Rear Maximum Height	6.000 in
Single Or Dual Plane Type	Dual
